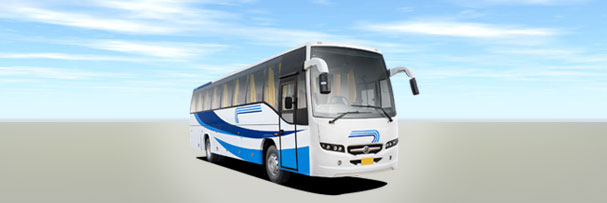

12M FE DIESEL
Parameters |
Specification |
|
|---|---|---|
Engine model |
H Series 6 cylinder CRS diesel engine |
|
Emission Norms |
BS IV with i-EGR |
BS IV with SCR |
Maximum Power |
132 kW (177 HP) @ 2400 rpm |
165 kW (221 HP) @ 2400 rpm |
Maximum Torque |
660 Nm @ 1200 - 1900 rpm |
800 Nm @ 1400 - 2100 rpm |
Clutch |
380 Diaphragm with Booster |
380 Diaphragm with Booster |
Transmission |
6 Speed Synchromesh overdrive gearbox |
|
Front Suspension |
Rubber ended leaf spring / Air |
|
Rear Suspension |
Semi Elliptical Multi leaf Spring / Air |
|
Steering |
Integral power steering |
|
Brakes |
Full air dual line with ABS |
|
Auxiliary brake |
HB 1200 – Electromagnetic retarder (Optional for AC Variant) |
|
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
|
AC option |
Yes, Engine Direct driven |
|
Electricals |
24V, 200Ah Battery, 85A Alternator |
|
Tyres |
295/80 R 22.5 tubeless radials |
|
Fuel tank |
350 Litres |
|
Major dimension |
||
Overall Length, mm |
12000 |
|
Wheelbase, mm |
6200 |
|
Front overhang, mm |
2400 |
|
Rear overhang, mm |
3400 |
|
GVW, Kg |
16200 |
|
Floor Height, mm |
1150 |
|
Seating capacity |
38+D, 40+D & 41+D, 2x2 Layout, Pushback seats |
|
LYNX SMART DIESEL
Parameters |
Specification |
|||
|---|---|---|---|---|
Engine model |
H Series 4 cylinder CRS diesel engine |
|||
Emission Norms |
BS IV with i-EGR |
|||
Maximum Power |
95 kW (127 HP) @ 2400 rpm |
|||
Maximum Torque |
450 Nm @ 1400 - 1600 rpm |
|||
Clutch |
330 mm Hydraulic clutch actuation with booster |
|||
Transmission |
5 Speed Synchromesh gearbox |
|||
Front Suspension |
Semi Elliptical Multi leaf Spring (Parabolic leaf spring for 4900 & 5200 Only) |
|||
Rear Suspension |
Semi Elliptical Multi leaf Spring (Parabolic leaf spring for 4900 & 5200 Only) |
|||
Steering |
Integral power steering |
|||
Brakes |
Full air dual line with ABS |
|||
Auxiliary brake |
NA |
|||
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
|||
AC option |
Yes |
|||
Electricals |
12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
|||
Tyres |
7.50 x 16 – 16 PR Cross ply / 8.25 x 16 – 16 PR Cross ply |
|||
Fuel tank |
115 Litres |
|||
Major dimension |
||||
Overall Length, mm |
7820 |
8300 |
9420 |
10300 |
Wheelbase, mm |
3900 |
4200 |
4900 |
5200 |
Front overhang, mm |
1580 |
1580 |
1580 |
1980 |
Rear overhang, mm |
2340 |
2520 |
2940 |
3120 |
Overall Width, mm |
2200 |
2200 |
2350 |
2350 |
GVW, Kg |
8100 |
8100 |
9300 |
10000 |
Floor Height, mm |
900 |
900 |
900 |
900 |
LYNX STRONG DIESEL
Parameters |
Specification |
||
|---|---|---|---|
Engine model |
H Series 4 cylinder CRS diesel engine |
||
Emission Norms |
BS IV with i-EGR |
||
Maximum Power |
95 kW (127 HP) @ 2400 rpm |
||
Maximum Torque |
450 Nm @ 1400 - 1600 rpm |
||
Clutch |
330 mm Hydraulic clutch actuation with booster |
||
Transmission |
5 Speed Synchromesh gearbox |
||
Front Suspension |
Semi Elliptical Multi leaf Spring |
||
Rear Suspension |
Semi Elliptical Multi leaf Spring |
||
Steering |
Integral power steering |
||
Brakes |
Full air dual line with ABS |
||
Auxiliary brake |
NA |
||
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
||
AC option |
Yes |
||
Electricals |
12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
||
Tyres |
8.25 x 20 – 16 PR Cross ply |
||
Fuel tank |
165 Litres |
||
Major dimension |
|||
Overall Length, mm |
7750 |
8230 |
9255 |
Wheelbase, mm |
3900 |
4200 |
4900 |
Front overhang, mm |
1510 |
1510 |
1510 |
Rear overhang, mm |
2340 |
2520 |
2940 |
Overall Width, mm |
2550 |
2550 |
2550 |
GVW, Kg |
11000 |
11000 |
11000 |
Floor Height, mm |
1050 |
1050 |
1050 |
Seating capacity |
32 (3X2) 20 (2X2) PB |
38 (3X2) 22 (2x2) PB |
47 (3X2) 27 (2x2) PB |
VIKING DIESEL
Parameters |
Specification |
|
|---|---|---|
Engine model |
H Series 6 cylinder CRS diesel engine |
|
Emission Norms |
BS IV with i-EGR |
|
Maximum Power |
132 kW (177 HP) @ 2400 rpm |
|
Maximum Torque |
660 Nm @ 1200 - 1900 rpm |
|
Clutch |
380 mm diaphragm clutch with Booster |
|
Transmission |
6 Speed Synchromesh overdrive gearbox |
|
Front Suspension |
Semi Elliptical Multi leaf Spring / Rubber ended leaf spring |
|
Rear Suspension |
Semi Elliptical Multi leaf Spring / Rubber ended leaf spring / Air |
|
Steering |
Integral power steering |
|
Brakes |
Full air dual line with ABS |
|
Auxiliary brake |
HB 1200 – Electromagnetic retarder (Optional for AC Variant) |
|
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
|
AC option |
Yes, Engine direct driven |
|
Electricals |
24V, 200Ah Battery, 85A Alternator |
|
Tyres |
10R20 tube radials (or) 295/80 R 22.5 tubeless radials |
|
Fuel tank |
350 Litres |
|
Major dimension |
||
Overall Length, mm |
10550 |
11038 |
Wheelbase, mm |
5443 |
5639 |
Front overhang, mm |
2016 |
2016 |
Rear overhang, mm |
3200 |
3383 |
GVW, Kg |
16200 |
16200 |
Floor Height, mm |
1150 |
1150 |
