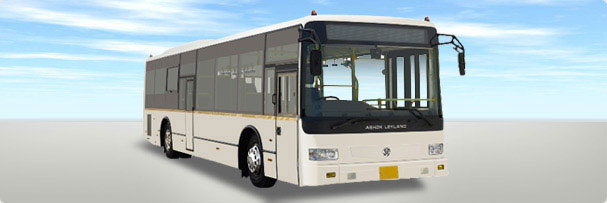

TARMAC Application

REULE DIESEL

Parameters

Specification

Engine model

H Series 6 cylinder CRS diesel engine

Emission Norms

BS IV with SCR

Maximum Power

165 kW (221 HP) @ 2400 rpm

Maximum Torque

800 Nm @ 1400 - 2100 rpm

Clutch

-

Transmission

Automatic Transmission

Front Suspension

Air

Rear Suspension

Air

Steering

Integral power steering

Brakes

Full air dual line with ABS

Auxiliary brake

Front Disc brake (Optional)

Parking brakes

Flick Valve operated hand brake on rear wheel only

AC option

Yes, Engine Direct driven

Electricals

24V, 100Ah Battery, 100A Alternator

Tyres

295/80 R 22.5 tubeless radials

Fuel tank

200 Litres

Major dimension

Overall Length, mm

11980

Wheelbase, mm

6320

Front overhang, mm

2500

Rear overhang, mm

3160

GVW, Kg

16200
