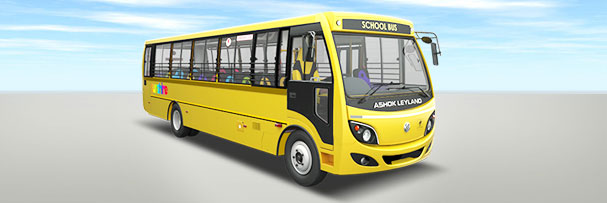

SUNSHINE DIESEL
Parameters |
Specification |
|
|---|---|---|
Engine model |
H Series 4 cylinder CRS diesel engine |
|
Emission Norms |
BS IV with i-EGR |
|
Maximum Power |
75 kW (100 HP) @ 2400 rpm |
|
Maximum Torque |
320 Nm @ 1200 - 2000 rpm |
|
Clutch |
280 mm Hydraulic clutch actuation with booster |
|
Transmission |
5 Speed Synchromesh gearbox |
|
Front Suspension |
Parabolic Leaf with Dampers & Anti Roll bar |
|
Rear Suspension |
Parabolic leaf spring with Dampers |
|
Steering |
Integral power steering |
|
Brakes |
Full air dual line with ABS |
|
Auxiliary brake |
NA |
|
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
|
AC option |
No |
|
Electricals |
12 volts, 75 Ah; Alternator capacity - 65 Amps |
|
Tyres |
7.50 x 16 -16 PR / 235/75 R 17.5 |
|
Fuel tank |
60 / 100 Litres |
|
Major dimension |
||
Overall Length, mm |
8135 |
9415 |
Wheelbase, mm |
4560 |
5200 |
Front overhang, mm |
1230 |
1230 |
Rear overhang, mm |
2345 |
2985 |
Overall Width, mm |
2200 |
2200 |
GVW, Kg |
8100 |
8100 |
Floor Height, mm |
765 |
765 |
Seating Layout |
33 (2x2) 40 (3x2) |
40 (2x2) 50 (3x2) |
LYNX SMART DIESEL
Parameters |
Specification |
|||
|---|---|---|---|---|
Engine model |
H Series 4 cylinder CRS diesel engine |
|||
Emission Norms |
BS IV with i-EGR |
|||
Maximum Power |
95 kW (127 HP) @ 2400 rpm |
|||
Maximum Torque |
450 Nm @ 1400 - 1600 rpm |
|||
Clutch |
330 mm Hydraulic clutch actuation with booster |
|||
Transmission |
5 Speed Synchromesh gearbox |
|||
Front Suspension |
Semi Elliptical Multi leaf Spring (Parabolic leaf spring for 4900 & 5200 Only) |
|||
Rear Suspension |
Semi Elliptical Multi leaf Spring (Parabolic leaf spring for 4900 & 5200 Only) |
|||
Steering |
Integral power steering |
|||
Brakes |
Full air dual line with ABS |
|||
Auxiliary brake |
NA |
|||
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
|||
AC option |
Yes |
|||
Electricals |
12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
|||
Tyres |
7.50 x 16 – 16 PR Cross ply / 8.25 x 16 – 16 PR Cross ply |
|||
Fuel tank |
115 Litres |
|||
Major dimension |
||||
Overall Length, mm |
7820 |
8300 |
9420 |
10300 |
Wheelbase, mm |
3900 |
4200 |
4900 |
5200 |
Front overhang, mm |
1580 |
1580 |
1580 |
1980 |
Rear overhang, mm |
2340 |
2520 |
2940 |
3120 |
Overall Width, mm |
2200 |
2200 |
2350 |
2350 |
GVW, Kg |
8100 |
8100 |
9300 |
10000 |
Floor Height, mm |
900 |
900 |
900 |
900 |
Seating capacity |
30 (2x2) 37 (3x2) |
33 (2x2) 42 (3x2) |
39 (2x2) 48 (3x2) 56 (3x3) |
45 (2x2) 54 (3x2) 65 (3x3) |
LYNX SMART CNG
Parameters |
Specification |
|---|---|
Engine model |
H Series 4 cylinder CNG Engine |
Emission Norms |
BS IV with EGC |
Maximum Power |
106 kW (144 HP) @ 2400 rpm |
Maximum Torque |
450 Nm @ 1600 - 2000 rpm |
Clutch |
330 mm Hydraulic clutch actuation with booster |
Transmission |
5 Speed Synchromesh gearbox |
Front Suspension |
Parabolic leaf spring |
Rear Suspension |
Parabolic leaf spring |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
NA |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
No |
Electricals |
24V, 150Ah Battery, 85A Alternator |
Tyres |
235 R 17.5 – tubeless radials |
CNG Capacity |
360 Water litre capacity |
Major dimension |
|
Overall Length, mm |
9390 |
Wheelbase, mm |
4900 |
Front overhang, mm |
1550 |
Rear overhang, mm |
2940 |
GVW, Kg |
10000 |
Floor Height, mm |
900 |
Seating capacity |
38 (2x2) |
LYNX STRONG DIESEL
Parameters |
Specification |
||
|---|---|---|---|
Engine model |
H Series 4 cylinder CRS diesel engine |
||
Emission Norms |
BS IV with i-EGR |
||
Maximum Power |
95 kW (127 HP) @ 2400 rpm |
||
Maximum Torque |
450 Nm @ 1400 - 1600 rpm |
||
Clutch |
330 mm Hydraulic clutch actuation with booster |
||
Transmission |
5 Speed Synchromesh gearbox |
||
Front Suspension |
Semi Elliptical Multi leaf Spring |
||
Rear Suspension |
Semi Elliptical Multi leaf Spring |
||
Steering |
Integral power steering |
||
Brakes |
Full air dual line with ABS |
||
Auxiliary brake |
NA |
||
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
||
AC option |
Yes |
||
Electricals |
12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
||
Tyres |
8.25 x 20 – 16 PR Cross ply |
||
Fuel tank |
165 Litres |
||
Major dimension |
|||
Overall Length, mm |
7750 |
8230 |
9255 |
Wheelbase, mm |
3900 |
4200 |
4900 |
Front overhang, mm |
1510 |
1510 |
1510 |
Rear overhang, mm |
2340 |
2520 |
2940 |
Overall Width, mm |
2550 |
2550 |
2550 |
GVW, Kg |
11000 |
11000 |
11000 |
Floor Height, mm |
1050 |
1050 |
1050 |
Seating capacity |
38 (3x2) 44 (3x3) |
39 (3x2) 44 (3x3) |
48 (3x2) |
LYNX STRONG CNG
Parameters |
Specification |
|---|---|
Engine model |
H Series 4 cylinder CNG Engine |
Emission Norms |
BS IV with EGC |
Maximum Power |
106 kW (144 HP) @ 2400 rpm |
Maximum Torque |
450 Nm @ 1600 - 2000 rpm |
Clutch |
330 mm Hydraulic clutch actuation with booster |
Transmission |
5 Speed Synchromesh gearbox |
Front Suspension |
Semi elliptic Multi leaf spring |
Rear Suspension |
Semi elliptic Multi leaf spring |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
NA |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
No |
Electricals |
24V, 150Ah Battery, 100A Alternator |
Tyres |
9.00 X 20 – Cross ply |
CNG Capacity |
480 Water litre capacity |
Major dimension |
|
Overall Length, mm |
9334 |
Wheelbase, mm |
4900 |
Front overhang, mm |
1494 |
Rear overhang, mm |
2940 |
GVW, Kg |
13000 |
Floor Height, mm |
1050 |
Seating capacity |
46 (3x2) 56 (3x3) |
VIKING DIESEL
Parameters |
Specification |
|
|---|---|---|
Engine model |
H Series 6 cylinder CRS diesel engine |
|
Emission Norms |
BS IV with i-EGR |
|
Maximum Power |
118 kW (158 HP) @ 2400 rpm |
132 kW (177 HP) @ 2400 rpm |
Maximum Torque |
550 Nm @ 1200 - 1900 rpm |
660 Nm @ 1200 - 1900 rpm |
Clutch |
14” Axial clutch with Mechanical Actuation |
380 mm diaphragm clutch with Booster |
Transmission |
6 Speed Synchromesh overdrive gearbox |
|
Front Suspension |
Semi Elliptical Multi leaf Spring / Rubber ended leaf spring |
|
Rear Suspension |
Semi Elliptical Multi leaf Spring / Rubber ended leaf spring / Air |
|
Steering |
Integral power steering |
|
Brakes |
Full air dual line with ABS |
|
Auxiliary brake |
NA |
|
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
|
AC option |
Yes, Engine direct driven |
|
Electricals |
24V, 150Ah Battery, 55A Alternator |
24V, 200Ah Battery, 85A Alternator |
Tyres |
10R20 tube radials (or) 295/80 R 22.5 tubeless radials |
|
Fuel tank |
239 Litres |
350 Litres |
Major dimension |
||
Overall Length, mm |
10550 |
11038 |
Wheelbase, mm |
5443 |
5639 |
Front overhang, mm |
2016 |
2016 |
Rear overhang, mm |
3200 |
3383 |
GVW, Kg |
16200 |
16200 |
Floor Height, mm |
1150 |
1150 |
VIKING CNG
Parameters |
Specification |
|---|---|
Engine model |
H Series 6 cylinder CNG Engine |
Emission Norms |
BS IV with EGC |
Maximum Power |
92 kW (123 HP) @ 2400 rpm |
Maximum Torque |
416 Nm @ 1200 - 1400 rpm |
Clutch |
14” Axial clutch with Mechanical Actuation |
Transmission |
5 Speed Synchromesh gearbox |
Front Suspension |
Rubber ended leaf Spring |
Rear Suspension |
Rubber ended leaf Spring |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
NA |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
No |
Electricals |
24V, 180Ah Battery, 55A Alternator |
Tyres |
10.00 X 20 – Cross ply |
CNG Capacity |
775 Water Litre capacity |
Major dimension |
|
Overall Length, mm |
11038 |
Wheelbase, mm |
5639 |
Front overhang, mm |
2016 |
Rear overhang, mm |
3383 |
GVW, Kg |
16200 |
Floor Height, mm |
1150 |
Seating capacity |
62+D, 3x2, Bench seats |
