Inter-City Application

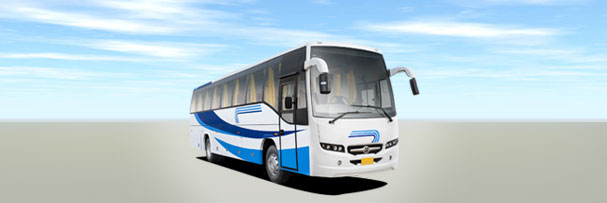

12M FE DIESEL

Parameters

Specification

Engine model

H Series 6 cylinder CRS diesel engine

Emission Norms

BS IV with i-EGR

BS IV with SCR

Maximum Power

132 kW (177 HP) @ 2400 rpm

123 kW (165 HP) @ 2400 rpm

165 kW (221 HP) @ 2400 rpm

Maximum Torque

660 Nm @ 1200 - 1900 rpm

550 Nm @ 1200 - 1800 rpm

800 Nm @ 1400 - 2100 rpm

Clutch

380 Diaphragm with Booster

14” Axial clutch with Hydraulic Actuation

380 Diaphragm with Booster

Transmission

6 Speed Synchromesh overdrive gearbox

Front Suspension

Rubber ended leaf spring / Air

Rear Suspension

Semi Elliptical Multi leaf Spring / Air

Steering

Integral power steering

Brakes

Full air dual line with ABS

Auxiliary brake

HB 1200 – Electromagnetic retarder (Optional for AC Variant)

Parking brakes

Flick Valve operated hand brake on rear wheel only

AC option

Yes, Engine Direct driven

Electricals

24V, 200Ah Battery, 85A Alternator

24V, 150Ah Battery, 55A Alternator

24V, 200Ah Battery, 85A Alternator

Tyres

10R20 tube radials (or) 295/80 R 22.5 tubeless radials

Fuel tank

350 Litres

Major dimension

Overall Length, mm

12000

Wheelbase, mm

6200

Front overhang, mm

2400

Rear overhang, mm

3400

GVW, Kg

16200

Floor Height, mm

1150

Seating capacity

38+D, 40+D & 41+D, 2x2 Layout, Pushback seats (or)

30 Berths

VIKING DIESEL

Parameters

Specification

Engine model

H Series 6 cylinder CRS diesel engine

Emission Norms

BS IV with i-EGR

Maximum Power

118 kW (158 HP) @ 2400 rpm

132 kW (177 HP) @ 2400 rpm

Maximum Torque

550 Nm @ 1200 - 1900 rpm

660 Nm @ 1200 - 1900 rpm

Clutch

14” Axial clutch with Mechanical Actuation

380 mm diaphragm clutch with Booster

Transmission

6 Speed Synchromesh overdrive gearbox

Front Suspension

Semi Elliptical Multi leaf Spring / Rubber ended leaf spring

Rear Suspension

Semi Elliptical Multi leaf Spring / Rubber ended leaf spring / Air

Steering

Integral power steering

Brakes

Full air dual line with ABS

Auxiliary brake

HB 1200 – Electromagnetic retarder (Optional for AC Variant)

Parking brakes

Flick Valve operated hand brake on rear wheel only

AC option

Yes, Engine direct driven

Electricals

24V, 150Ah Battery, 55A Alternator

24V, 200Ah Battery, 85A Alternator

Tyres

10R20 tube radials (or) 295/80 R 22.5 tubeless radials

Fuel tank

239 Litres

350 Litres

Major dimension

Overall Length, mm

11038

Wheelbase, mm

5639

Front overhang, mm

2016

Rear overhang, mm

3383

GVW, Kg

16200

Floor Height, mm

1150

Seating capacity

36+D, 2x2 Layout, Pushback Seats (or)

30 Berths
