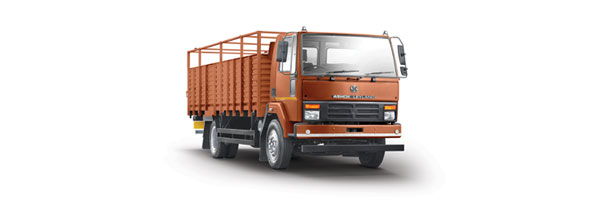

Ecomet 1012
Engine: | H series 4 cylinder CRS |
Maximum Power: | 130 HP @ 2400 rpm |
Maximum Torque: | 450 Nm @ 1250-2000 rpm |
Clutch: | 330 mm dia single plate dry type - hydraulic actuation |
Transmission: | Synchromesh 6 speed gearbox with overdrive |
Front axle: | I section reverse elliot |
Rear axle: | Fully floating hyphoid axle |
Frame: | All steel ladder type with bolted construction |
Suspension: | Shackle-ended multileaf springs |
Max Brakes: | Full air, dual line, S-cam brakes |
Parking brakes: | Spring actuated, pneumatic parking brakes on rear wheels only |
Fuel tank Capacity: | 200 litres |
Battery: | 12 V - 100 Ah |
Tyres: | 8.25X16 PR |

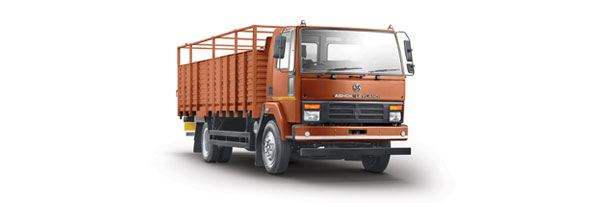

Ecomet 1212
Engine: | H series 4 cylinder CRS |
Maximum Power: | 130 HP @ 2400 rpm |
Maximum Torque: | 450 Nm @ 1250-2000 rpm |
Clutch: | 330 mm dia single plate dry type - hydraulic actuation |
Transmission: | Synchromesh 6 speed gearbox with overdrive |
Front axle: | I section reverse elliot |
Rear axle: | Heavy duty hyphoid axle |
Frame: | All steel ladder type with bolted construction |
Suspension: | Shackle-ended multileaf springs |
Brakes: | Full air, dual line, S-cam brakes |
Parking brakes: | Spring actuated, pneumatic parking brakes on rear wheels only |
Fuel tank Capacity: | 200 litres |
Battery: | 12 V - 100 Ah |
Tyres: | 8.25 R 20 - 16 PR radial tyres |
Ecomet 1214
Engine: | H series 4 cylinder CRS |
Maximum Power: | 130 HP @ 2400 rpm |
Maximum Torque: | 450 Nm @ 1250-2000 rpm |
Clutch: | 330 mm dia single plate dry type - hydraulic actuation |
Transmission: | Synchromesh 6 speed gearbox with overdrive |
Front axle: | I section reverse elliot |
Rear axle: | Heavy duty hyphoid axle |
Frame: | All steel ladder type with bolted construction |
Suspension: | Shackle-ended multileaf springs |
Brakes: | Full air, dual line, S-cam brakes |
Parking brakes: | Spring actuated, pneumatic parking brakes on rear wheels only |
Fuel tank Capacity: | 200 litres |
Battery: | 12 V - 100 Ah |
Tyres: | 9.00R20 16 PR radial tyres |
ecomet 1012 Tipper
Engine: | H series 4 cylinder CRS |
Maximum Power: | 130 HP @ 2400 rpm |
Maximum Torque: | 450 Nm @ 1250-2000 rpm |
Clutch: | 330 mm dia single plate dry type - hydraulic actuation |
Transmission: | Synchromesh 6 speed gearbox with overdrive |
Front axle: | I section reverse elliot |
Rear axle: | Fully floating hyphoid axle |
Frame: | All steel ladder type with bolted construction |
Suspension: | Shackle-ended multileaf springs |
Brakes: | Full air, dual line, S-cam brakes |
Parking brakes: | Spring actuated, pneumatic parking brakes on rear wheels only |
Fuel tank Capacity: | 115 litres |
Battery: | 12 V - 100 Ah |
Tyres: | 8.25X16 - 16 PR |

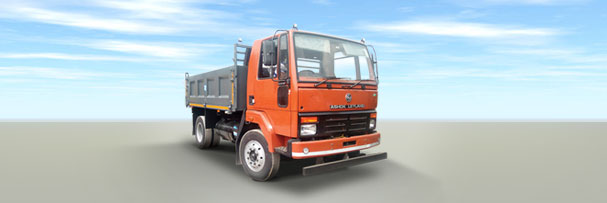

ecomet 1212 Tipper
Engine: | H series 4 cylinder CRS |
Maximum Power: | 130 HP @ 2400 rpm |
Maximum Torque: | 450 Nm @ 1250-2000 rpm |
Clutch: | 330 mm dia single plate dry type - hydraulic actuation |
Transmission: | Synchromesh 6 speed gearbox with overdrive |
Front axle: | I section reverse elliot |
Rear axle: | Fully floating hyphoid axle |
Frame: | All steel ladder type with bolted construction |
Suspension: | Shackle-ended multileaf springs |
Brakes: | Full air, dual line, S-cam brakes |
Parking brakes: | Spring actuated, pneumatic parking brakes on rear wheels only |
Fuel tank Capacity: | 200 litres |
Battery: | 12 V - 100 Ah |
Tyres: | 8.25 R 20 - 16 PR radial tyres |
