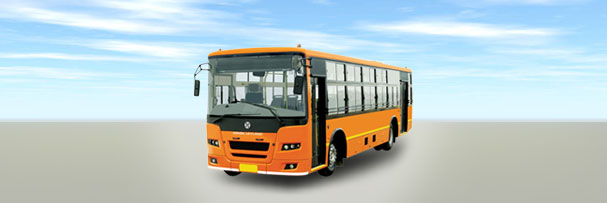

VIKING DIESEL
Parameters |
Specification |
|
|---|---|---|
Engine model |
H Series 6 cylinder CRS diesel engine |
|
Emission Norms |
BS IV with i-EGR |
|
Maximum Power |
118 kW (158 HP) @ 2400 rpm |
|
Maximum Torque |
550 Nm @ 1200 - 1900 rpm |
|
Clutch |
14” Axial clutch with Mechanical Actuation |
|
Transmission |
6 Speed Synchromesh overdrive gearbox |
|
Front Suspension |
Semi Elliptical Multi leaf Spring / Rubber ended leaf spring |
|
Rear Suspension |
Semi Elliptical Multi leaf Spring / Rubber ended leaf spring / Air |
|
Steering |
Integral power steering |
|
Brakes |
Full air dual line with ABS |
|
Auxiliary brake |
NA |
|
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
|
AC option |
No |
|
Electricals |
24V, 150Ah Battery, 55A Alternator |
|
Tyres |
10R20 tube radials |
|
Fuel tank |
239 Litres |
|
Major dimension |
||
Overall Length, mm |
10550 |
11038 |
Wheelbase, mm |
5443 |
5639 |
Front overhang, mm |
2016 |
2016 |
Rear overhang, mm |
3200 |
3383 |
GVW, Kg |
16200 |
16200 |
Floor Height, mm |
1150 |
1150 |
VIKING CNG
Parameters |
Specification |
|---|---|
Engine model |
H Series 6 cylinder CNG Engine |
Emission Norms |
BS IV with EGC |
Maximum Power |
92 kW (123 HP) @ 2400 rpm |
Maximum Torque |
416 Nm @ 1200 - 1400 rpm |
Clutch |
14” Axial clutch with Mechanical Actuation |
Transmission |
5 Speed Synchromesh gearbox |
Front Suspension |
Rubber ended leaf Spring |
Rear Suspension |
Rubber ended leaf Spring |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
NA |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
No |
Electricals |
24V, 180Ah Battery, 55A Alternator |
Tyres |
10.00 X 20 – Cross ply |
CNG Capacity |
775 Water Litre capacity |
Major dimension |
|
Overall Length, mm |
11038 |
Wheelbase, mm |
5639 |
Front overhang, mm |
2016 |
Rear overhang, mm |
3383 |
GVW, Kg |
16200 |
Floor Height, mm |
1150 |
Seating capacity |
44+D, 2x2 layout, Std seats |
