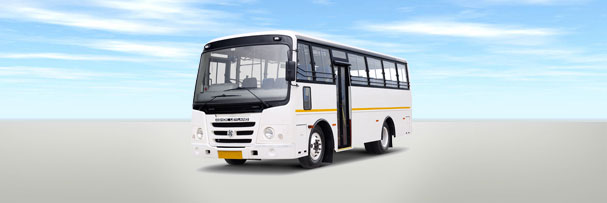

LYNX STRONG DIESEL
Parameters |
Specification |
||
---|---|---|---|
Engine model |
H Series 4 cylinder CRS diesel engine |
||
Emission Norms |
BS IV with i-EGR |
||
Maximum Power |
95 kW (127 HP) @ 2400 rpm |
||
Maximum Torque |
450 Nm @ 1400 - 1600 rpm |
||
Clutch |
330 mm Hydraulic clutch actuation with booster |
||
Transmission |
5 Speed Synchromesh gearbox |
||
Front Suspension |
Semi Elliptical Multi leaf Spring |
||
Rear Suspension |
Semi Elliptical Multi leaf Spring |
||
Steering |
Integral power steering |
||
Brakes |
Full air dual line with ABS |
||
Auxiliary brake |
NA |
||
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
||
AC option |
Yes |
||
Electricals |
12V, 130Ah Battery, 65A Alternator (24V, 150Ah Battery, 85A Alternator) |
||
Tyres |
8.25 x 20 – 16 PR Cross ply |
||
Fuel tank |
165 Litres |
||
Major dimension |
|||
Overall Length, mm |
7750 |
8230 |
9255 |
Wheelbase, mm |
3900 |
4200 |
4900 |
Front overhang, mm |
1510 |
1510 |
1510 |
Rear overhang, mm |
2340 |
2520 |
2940 |
Overall Width, mm |
2550 |
2550 |
2550 |
GVW, Kg |
11000 |
11000 |
11000 |
Floor Height, mm |
1050 |
1050 |
1050 |
Seating capacity |
21+1, 2x2 layout, Std seats |
27+1, 2x2 layout, Std seats |
34+1, 2x2 layout, Std seats |
LYNX STRONG CNG
Parameters |
Specification |
---|---|
Engine model |
H Series 4 cylinder CNG Engine |
Emission Norms |
BS IV with EGC |
Maximum Power |
106 kW (144 HP) @ 2400 rpm |
Maximum Torque |
450 Nm @ 1600 - 2000 rpm |
Clutch |
330 mm Hydraulic clutch actuation with booster |
Transmission |
5 Speed Synchromesh gearbox |
Front Suspension |
Semi elliptic Multi leaf spring |
Rear Suspension |
Semi elliptic Multi leaf spring |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
NA |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
No |
Electricals |
24V, 150Ah Battery, 100A Alternator |
Tyres |
9.00 X 20 – Cross ply |
CNG Capacity |
480 Water litre capacity |
Major dimension |
|
Overall Length, mm |
9334 |
Wheelbase, mm |
4900 |
Front overhang, mm |
1494 |
Rear overhang, mm |
2940 |
GVW, Kg |
13000 |
Floor Height, mm |
1050 |
Seating capacity |
32+D, 2x2 Layout, Std seats |
