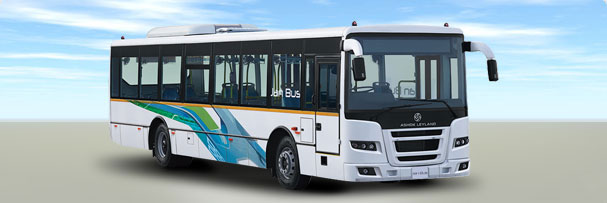

JANBUS DIESEL
Parameters |
Specification |
|---|---|
Engine model |
H Series 6 cylinder CRS diesel engine |
Emission Norms |
BS IV with SCR |
Maximum Power |
165 kW (221 HP) @ 2400 rpm |
Maximum Torque |
800 Nm @ 1400 - 2100 rpm |
Clutch |
15” RDC with Booster |
Transmission |
Automated Manual Transmission |
Front Suspension |
Air |
Rear Suspension |
Air |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
- |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
Yes, Engine Direct driven |
Electricals |
24V, 150Ah Battery, 100A Alternator |
Tyres |
295/80 R 22.5 tubeless radials |
Fuel tank |
165 Litres |
Major dimension |
|
Overall Length, mm |
12000 |
Wheelbase, mm |
6000 |
Front overhang, mm |
2590 |
Rear overhang, mm |
3410 |
GVW, Kg |
16200 |
Floor Height, mm |
650 |
JANBUS CNG
Parameters |
Specification |
|---|---|
Engine model |
H Series 6 cylinder CNG Engine |
Emission Norms |
BS IV with EGC |
Maximum Power |
132 kW (177 HP) @ 2400 rpm |
Maximum Torque |
615 Nm @ 1600 - 1800 rpm |
Clutch |
NA |
Transmission |
Automatic Transmission |
Front Suspension |
Air |
Rear Suspension |
Air |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
NA |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
No |
Electricals |
24V, 150Ah Battery, 100A Alternator |
Tyres |
295/80 R 22.5 – tubeless radials |
CNG Capacity |
720 Water Litre capacity |
Major dimension |
|
Overall Length, mm |
12000 |
Wheelbase, mm |
6000 |
Front overhang, mm |
2590 |
Rear overhang, mm |
3410 |
GVW, Kg |
16200 |
Floor Height, mm |
650 |
Seating capacity |
38+D+WC, 2x2 layout, Std Seats |
