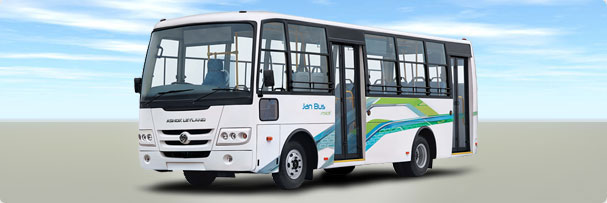

JANBUS MIDI DIESEL
Parameters |
Specification |
---|---|
Engine model |
H Series 4 cylinder CRS diesel engine |
Emission Norms |
BS IV with SCR |
Maximum Power |
95 kW (127 HP) @ 2400 rpm |
Maximum Torque |
450 Nm @ 1400 - 1900 rpm |
Clutch |
330 mm Hydraulic clutch actuation with booster |
Transmission |
5 Speed Synchromesh gearbox |
Front Suspension |
Parabolic leaf Spring |
Rear Suspension |
Parabolic leaf Spring |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
NA |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
No |
Electricals |
24V, 150Ah Battery, 120A Alternator |
Tyres |
235 R 17.5 – tubeless radials |
Fuel tank |
140 Litres |
Major dimension |
|
Overall Length, mm |
8170 |
Wheelbase, mm |
4200 |
Front overhang, mm |
1450 |
Rear overhang, mm |
2520 |
Overall Width, mm |
2100 |
GVW, Kg |
9000 |
Floor Height, mm |
650 |
Seating capacity |
26+D, 2x1 layout, Std seats |
JANBUS MIDI CNG
Parameters |
Specification |
---|---|
Engine model |
H Series 4 cylinder CNG Engine |
Emission Norms |
BS IV with EGC |
Maximum Power |
106 kW (142 HP) @ 2400 rpm |
Maximum Torque |
450 Nm @ 1600 - 2000 rpm |
Clutch |
330 mm Hydraulic clutch actuation with booster |
Transmission |
5 Speed Synchromesh gearbox |
Front Suspension |
Parabolic leaf spring |
Rear Suspension |
Parabolic leaf spring |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
NA |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
No |
Electricals |
24V, 150Ah Battery, 100A Alternator |
Tyres |
235 R 17.5 – tubeless radials |
CNG Capacity |
540 Water litre capacity |
Major dimension |
|
Overall Length, mm |
9390 |
Wheelbase, mm |
4900 |
Front overhang, mm |
1550 |
Rear overhang, mm |
2940 |
GVW, Kg |
10000 |
Floor Height, mm |
650 |
Seating capacity |
26+D, 2x1 Layout, Std seats |
