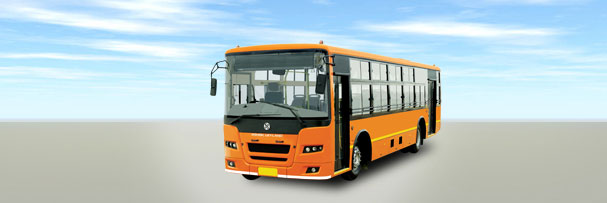

12M FESLF Diesel
Parameters |
Specification |
|---|---|
Engine model |
H Series 6 cylinder CRS diesel engine |
Emission Norms |
BS IV with SCR |
Maximum Power |
165 kW (221 HP) @ 2400 rpm |
Maximum Torque |
800 Nm @ 1400 - 2100 rpm |
Clutch |
15” RDC with Booster |
Transmission |
Automated Manual Transmission |
Front Suspension |
Rubber ended leaf spring |
Rear Suspension |
Air |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
- |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
Yes, Engine Direct driven |
Electricals |
24V, 150Ah Battery, 100A Alternator |
Tyres |
295/80 R 22.5 tubeless radials |
Fuel tank |
165 Litres |
Major dimension |
|
Overall Length, mm |
12000 |
Wheelbase, mm |
6000 |
Front overhang, mm |
2400 |
Rear overhang, mm |
3600 |
GVW, Kg |
16200 |
Floor Height, mm |
900 |
Seating capacity |
35+D, 2x2 layout, Std seats |
12M FESLF CNG
Parameters |
Specification |
|
|---|---|---|
Engine model |
H Series 6 cylinder CNG Engine |
|
Emission Norms |
BS IV with EGC |
|
Maximum Power |
92 kW (123 HP) @ 2400 rpm |
161 kW (216 HP) @ 2400 rpm |
Maximum Torque |
416 Nm @ 1200 - 1400 rpm |
700 Nm @ 1200 - 1400 rpm |
Clutch |
14” Axial clutch with Mechanical Actuation |
15” RDC with Booster |
Transmission |
5 Speed Synchromesh gearbox |
6 Speed Synchromesh overdrive gearbox |
Front Suspension |
Rubber ended leaf Spring |
|
Rear Suspension |
Air |
|
Steering |
Integral power steering |
|
Brakes |
Full air dual line with ABS |
|
Auxiliary brake |
NA |
|
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
|
AC option |
No |
Yes, Engine direct driven |
Electricals |
24V, 150Ah Battery, 55A Alternator |
24V, 150Ah Battery, 85A Alternator |
Tyres |
10R20 - Radial |
295/80 R 22.5 – tubeless radials |
CNG Capacity |
710 Water Litre capacity |
850 Water Litre capacity |
Major dimension |
||
Overall Length, mm |
11038 |
12000 |
Wheelbase, mm |
5639 |
6000 |
Front overhang, mm |
2016 |
2400 |
Rear overhang, mm |
3383 |
3600 |
GVW, Kg |
16200 |
16200 |
Floor Height, mm |
900 |
900 |
Seating capacity |
40+D, 2x2 layout, Std seats |
|
