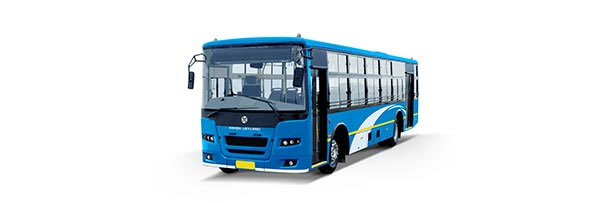

12M FE DIESEL
Parameters |
Specification |
---|---|
Engine model |
H Series 6 cylinder CRS diesel engine |
Emission Norms |
BS IV with SCR |
Maximum Power |
123 kW (165 HP) @ 2400 rpm |
Maximum Torque |
550 Nm @ 1200 - 1800 rpm |
Clutch |
14” Axial clutch with Hydraulic Actuation |
Transmission |
6 Speed Synchromesh overdrive gearbox |
Front Suspension |
Rubber ended leaf spring / Air |
Rear Suspension |
Semi Elliptical Multi leaf Spring / Air |
Steering |
Integral power steering |
Brakes |
Full air dual line with ABS |
Auxiliary brake |
NA |
Parking brakes |
Flick Valve operated hand brake on rear wheel only |
AC option |
No |
Electricals |
24V, 150Ah Battery, 55A Alternator |
Tyres |
10R20 tube radials |
Fuel tank |
350 Litres |
Major dimension |
|
Overall Length, mm |
12000 |
Wheelbase, mm |
6200 |
Front overhang, mm |
2400 |
Rear overhang, mm |
3400 |
GVW, Kg |
16200 |
Floor Height, mm |
1150 |
Seating capacity |
48+D, 2x2 layout, Std seats |
